Range

12.000 ft,  45% Power, Reserve of 45 minutes

640 NM / 1,185 km


MTOW, FL120, Maximum Power, Full Tank

589 NM / 1,091 km

Max. Cruising Speed

Maximum Cruising Power, 8,500 ft

124 kts / 230 km/h

Takeoff Distance

MTOW, 50 ft Obstacle

960 ft / 293 m

Landing Distance

MLW, 50 ft Obstacle, Full Flaps

575 ft / 175 m

Engine

Lycoming
IO-360-L2A

Engine Power

180 hp

Number of Seats

Pilots + Passengers

1 + 3

Avionics

Garmin
G1000 NXi

MAIN DIFFERENCES

SIMPLE
OPERATING

The 172S Skyhawk is an airplane that is easy to operate, has a low operating cost, and allows landings on short runways. Its high wings guarantee more stability, besides offering panoramic views during the flight.

SAFETY

The model displays typical characteristics of a large aircraft, being considered one of the safest piston airplanes in the world and an excellent entry level product of the Cessna line.

DURABILITY

The model is equipped with a Lycoming engine, recognized worldwide for its durability and high degree of reliability.

AVIONICS

The cockpit is equipped with Garmin G1000 NXi avionics, which is the most modern in aircraft navigation panel equipment in this category.
DESIGN
In addition to the high wings, which ensures more stability to the aircraft, the 172S Skyhawk contains two large doors, making it easy for passengers and cargo to enter and exit.
0%
IMAGE GALLERY

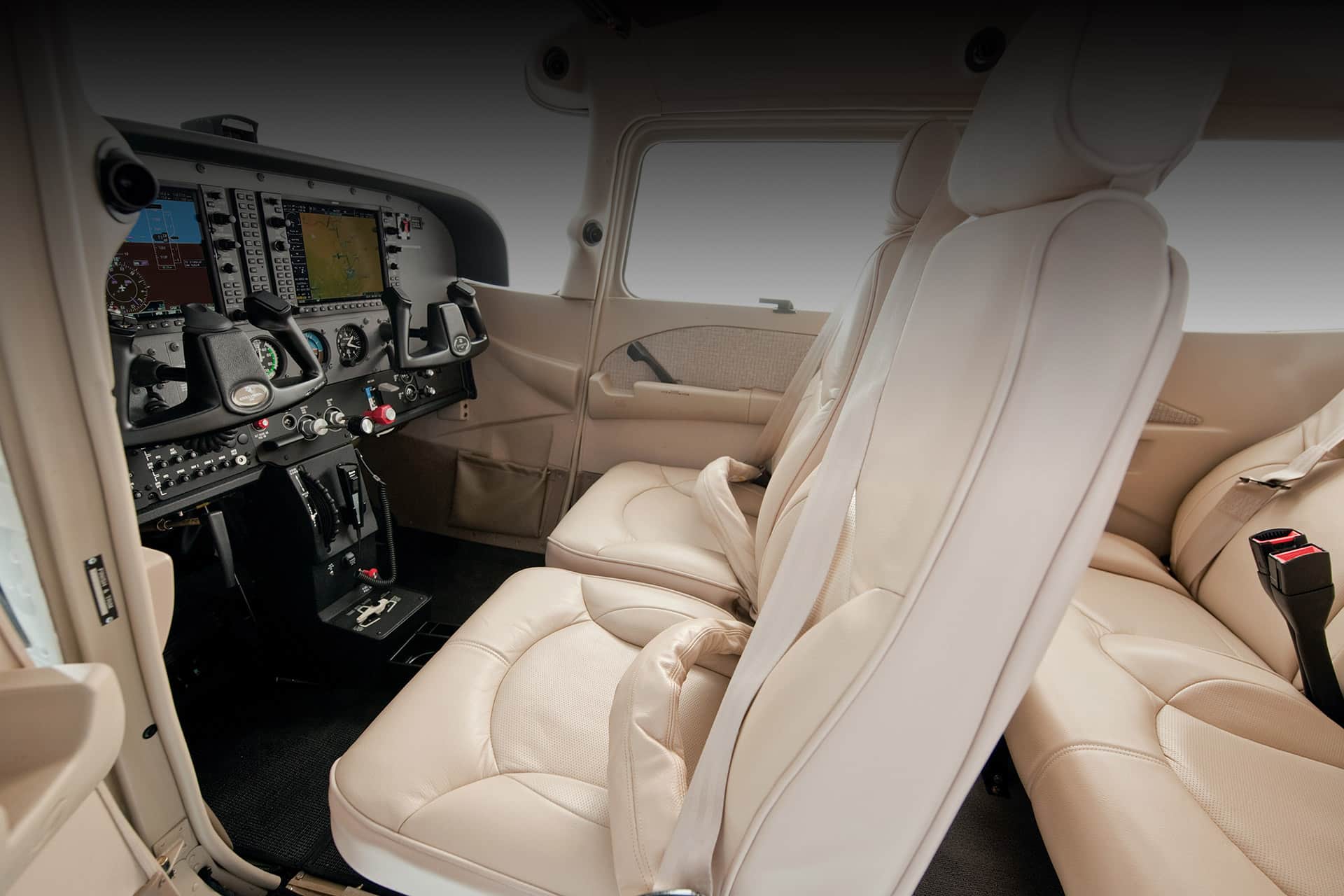

INTERIOR SPACE
The aircraft has ergonomic features that ensure more comfort for pilots and passengers, even in long flights.
DETAILED SPECIFICATIONS
DIMENSIONS
Length 8.28 m
Height 2.72 m
Wingspan 11 m
CABIN
Seats (pil. + pass.) 1 + 3

WEIGHTS
Maximum Takeoff Weight 2,550 lb (1,157 kg)
Payload 403 kg
Maximum Fuel 53 gal (201 L)

EQUIPMENT
Engine Lycoming IO-360-L2A
Avionics Garmin G1000 NXi


PERFORMANCE
Maximum Range1 640 NM (1,185 km)
Max. Cruising Speed2 124 kts (230 km/h)

Takeoff
Takeoff Distance3 960 ft (293 m)

Landing
Landing Distance4 575 ft (175 m)

Service Ceiling 14,000 ft (4,267 m)
Max. Rate of Climb 730 ft/min
1 12.000 ft,  45% Power, Reserve of 45 minutes
2 Maximum Cruising Power, 8,500 ft
3 MTOW, ISA, Sea Level, No Obstacles
4 MLW, ISA, Sea Level, No Obstacles
