Range

8.000 ft,  45% Power, Reserve of 45 minutes

703 NM / 1,302 km


MTOW, FL120, Maximum Power, Full Tank

611 NM / 1,132 km

Max. Cruising Speed

Maximum Cruising Power, 20,000 ft

161 kts / 298 km/h

Takeoff Distance

MTOW, ISA, Sea Level, No Obstacles

1,060 ft / 323 m

Landing Distance

MLW,  ISA, Sea Level, No Obstacles

735 ft / 224 m

Engine

Lycoming
TIO-540-AJ1A

Engine Power

310 hp

Number of Seats

Pilots + Passengers

1 + 5

Avionics

Garmin
G1000 NXi

MAIN DIFFERENCES

SPACIOUS

The model has the largest interior space in the Cessna line and one of the largest in the category, and can comfortably carry up to five passengers.

VERSATILE

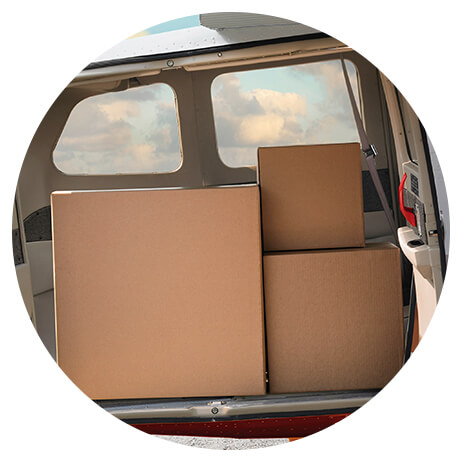

Its large cabin can be easily reconfigured, serving the most varied missions. Also available in the utility version for an even larger payload.

SAFE

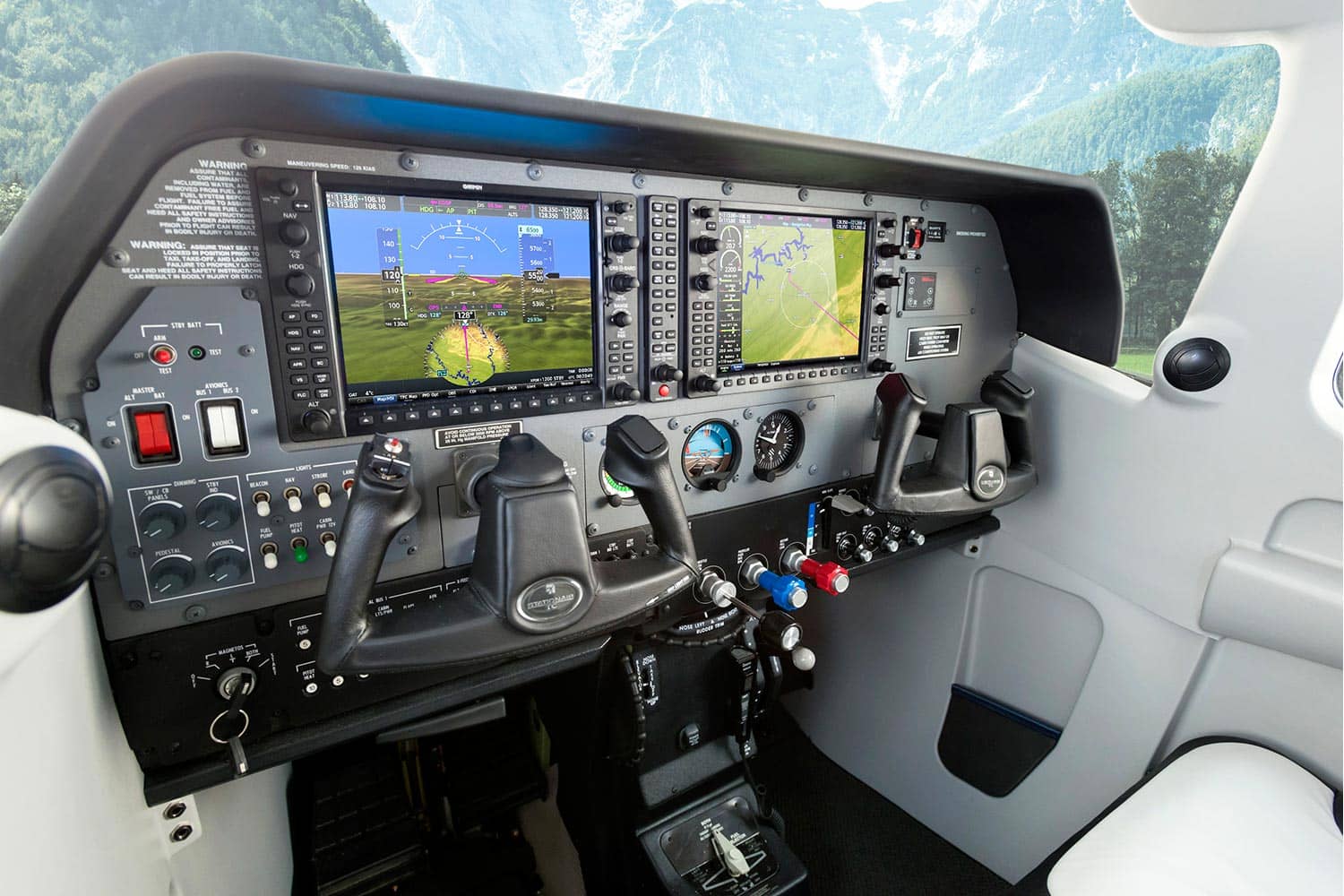

Take-off, flight, and landing. At all stages, you can count on the maximum safety of the Cessna, powered by Garmin G1000 NXi avionics.
DESIGN

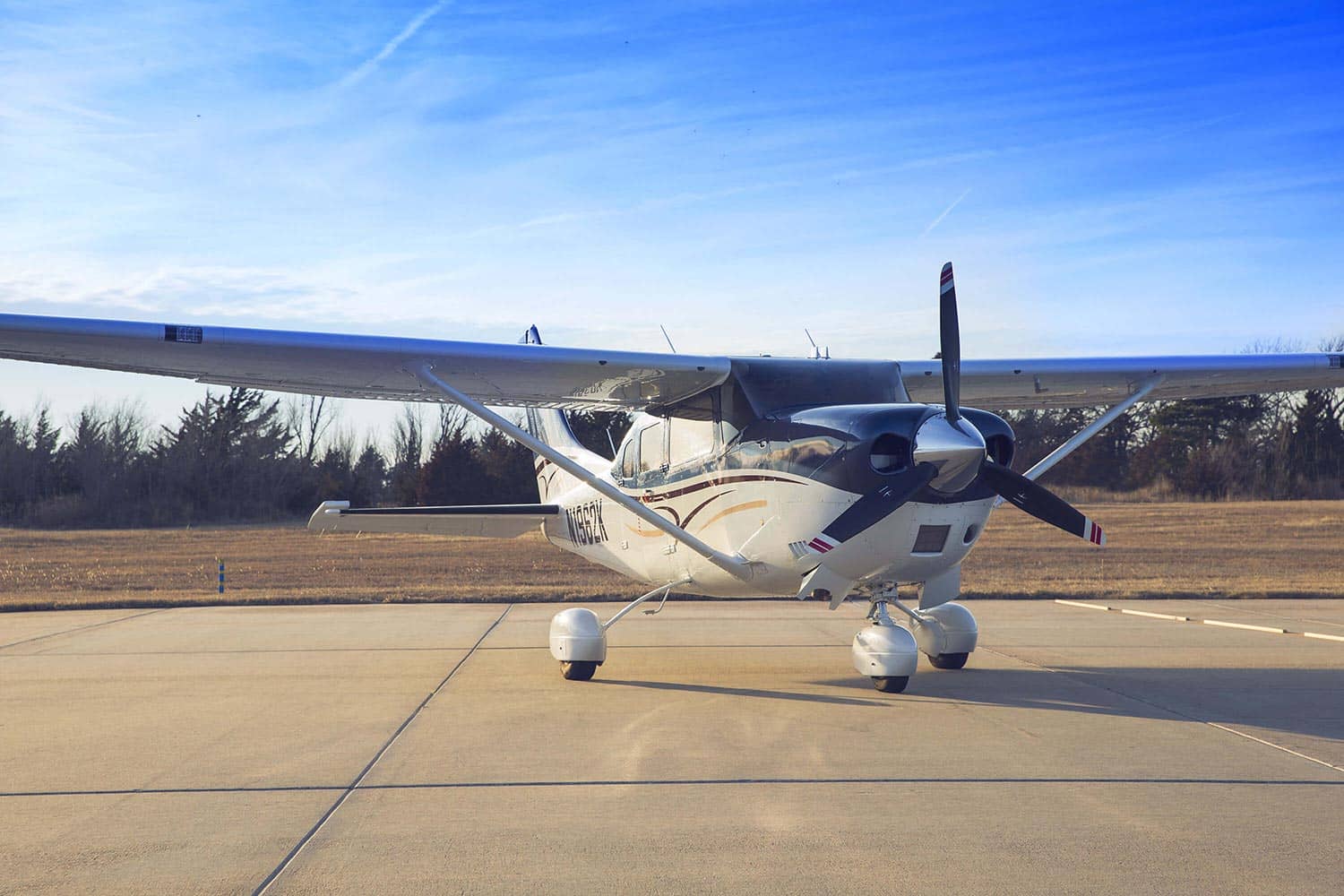

The bold design of the T206H Turbo Stationair HD was designed for the aircraft to achieve maximum aerodynamic performance. Details such as LED landing lights and bold lines not only help to bring together the look but also enhance safety and economy.
0%
IMAGE GALLERY
INTERIOR SPACE

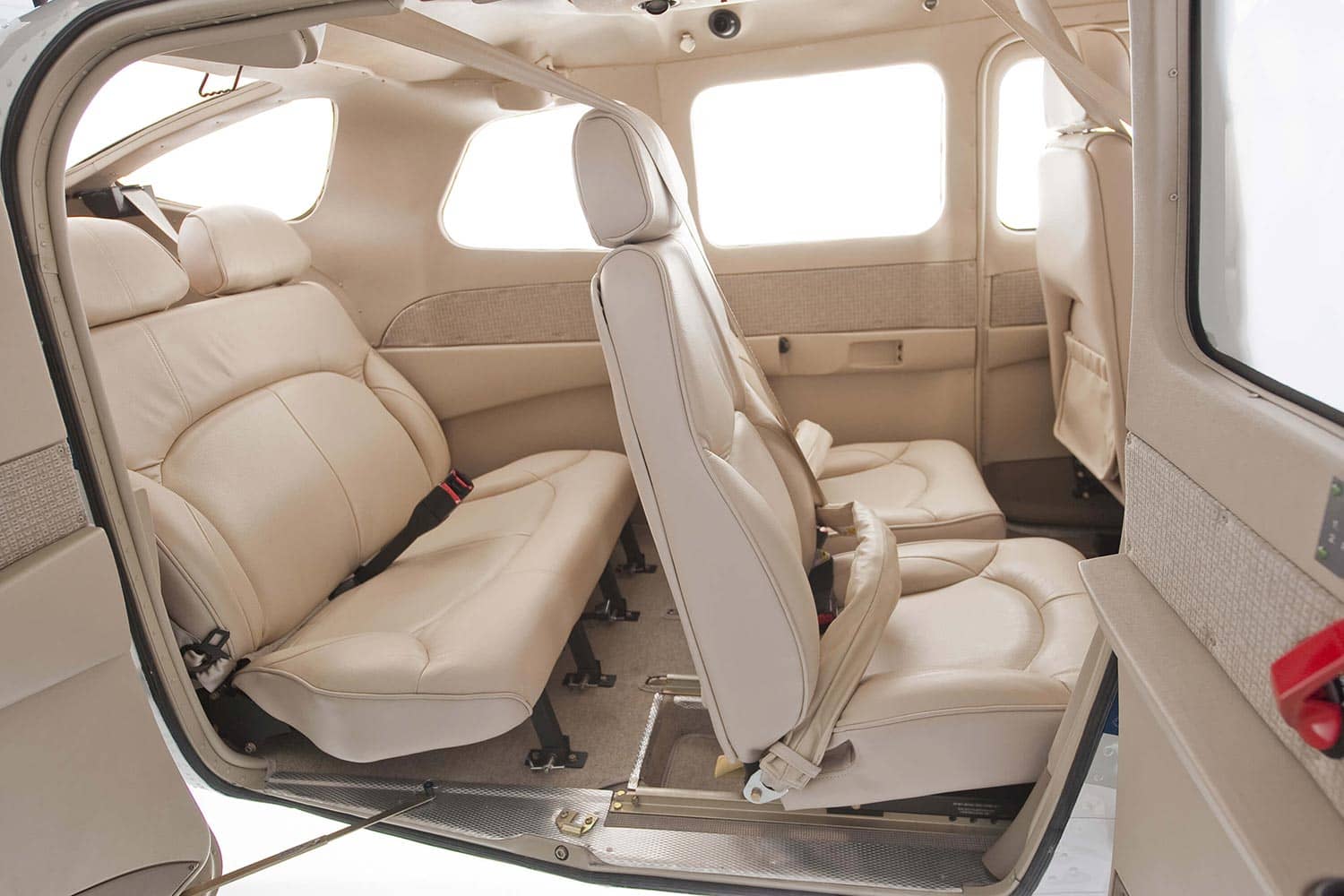

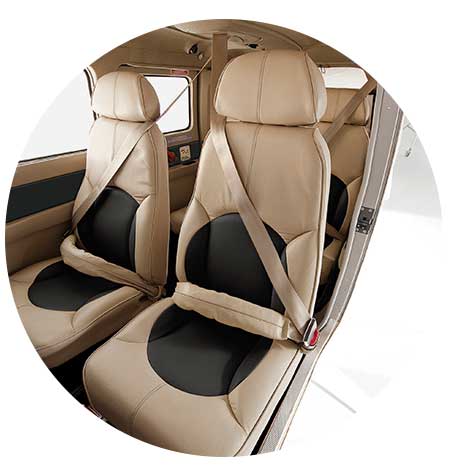

Seat configuration options can be easily adapted into a track system. All passengers have access to lighting, ventilation, and 12-volt power outlet, plus, of course, the luxury provided by Cessna's exquisite finish.
DETAILED SPECIFICATIONS
DIMENSIONS
Length 8.60 m
Height 2.80 m
Wingspan 10.97 m
CABIN
Seats (pil. + pass.) 1 + 5

WEIGHTS
Maximum Takeoff Weight 3,789 lb (1,719 kg)
Payload 654 kg
Maximum Fuel 87 gal (329 L)

EQUIPMENT
Engine Lycoming TIO-540-AJ1A
Avionics Garmin G1000 NXi


PERFORMANCE
Maximum Range1 703 NM (1,302 km)
Max. Cruising Speed2 161 kts (298 km/h)

Takeoff
Takeoff Distance3 1,060 ft (323 m)

Landing
Landing Distance4 735 ft (224 m)

Service Ceiling 26,000 ft (7,925 m)
Max. Rate of Climb 960 ft/min
1 8.000 ft,  45% Power, Reserve of 45 minutes
2 Maximum Cruising Power, 20,000 ft
3 MTOW, ISA, Sea Level, No Obstacles
4 MLW,  ISA, Sea Level, No Obstacles
