Range

12.000 ft,  55% Power, Reserve of 45 minutes

915 NM / 1,695 km


MTOW, FL120, Maximum Power, Full Tank

924 NM / 1,711 km

Max. Cruising Speed

Maximum Cruise Speed, 7,000 ft

145 kts / 269 km/h

Takeoff Distance

PMD, ISA, Sea Level, No Obstacles

795 ft / 242 m

Landing Distance

MLW, Sea Level, ISA, No Obstacles

590 ft / 180 m

Engine

Lycoming
IO-540-AB1A5

Engine Power

230 hp

Number of Seats

Pilots + Passengers

1 + 3

Avionics

Garmin
G1000 NXi

MAIN DIFFERENCES

FLEXIBILITY

In addition to carrying a lot of cargo, the aircraft even operates on short and uneven runways, perfect for the most diverse missions, including those involving agribusiness.

SAFETY

In addition to the warranty by Cessna, the world's largest general aircraft manufacturer, the model is equipped with state-of-the-art technology, which enables many features to be more intuitive, significantly reducing the pilot's workload and increasing the level of safety of the operation.

RELIABILITY

With a 230 HP Lycoming engine and with traditional Cessna quality, this aircraft is synonymous with reliability.

AVIONICS

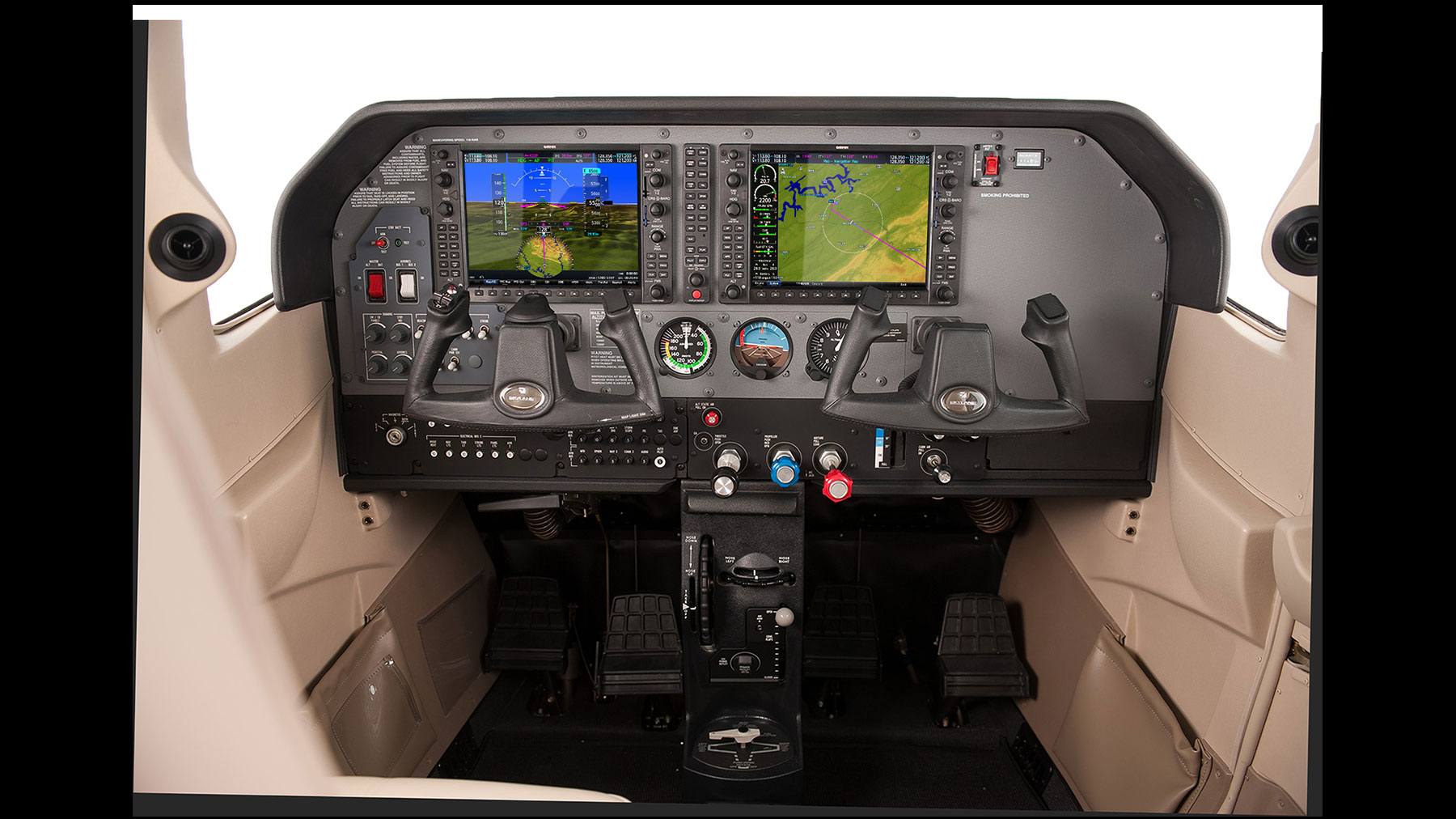

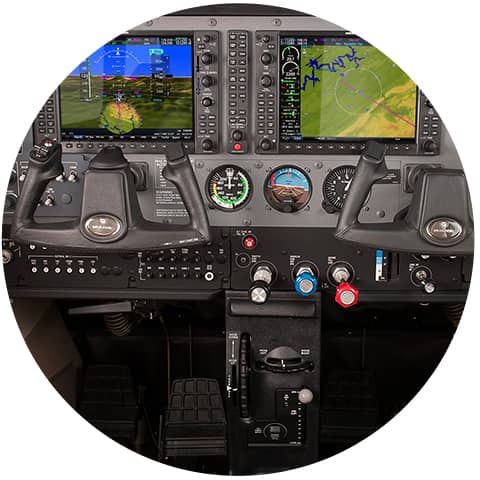

It has a panel with Garmin G1000 NXi avionics, some of the most modern equipment for aircraft panels.
DESIGN
The model has a classic touch, like the high wings, which improve the visibility of the flight.
0%
IMAGE GALLERY
INTERIOR SPACE
The model offers an excellent use of the interior space of the cabin, providing even more comfort to passengers and crew.
DETAILED SPECIFICATIONS
DIMENSIONS
Length 8.84 m
Height 2.84 m
Wingspan 10.97 m
CABIN
Seats (pil. + pass.) 1 + 3

WEIGHTS
Maximum Takeoff Weight 3,100 lb (1,406 kg)
Payload 503 kg
Maximum Fuel 87 gal (329 L)

EQUIPMENT
Engine Lycoming IO-540-AB1A5
Avionics Garmin G1000 NXi


PERFORMANCE
Maximum Range1 915 NM (1,695 km)
Max. Cruising Speed2 145 kts (269 km/h)

Takeoff
Takeoff Distance3 795 ft (242 m)

Landing
Landing Distance4 590 ft (180 m)

Service Ceiling 18,100 ft (5,517 m)
Max. Rate of Climb 924 ft/min
1 12.000 ft,  55% Power, Reserve of 45 minutes
2 Maximum Cruising Power, 7,000 ft
3 PMD, ISA, Sea Level, No Obstacles
4 MLW, Sea Level, ISA, No Obstacles
