Range

Maximum Range Power, Reserve of 45 min

920 NM / 1,704 km


MTOW, FL120, Maximum Power, Full Tank

778 NM / 1,441 km

Max. Cruising Speed

Maximum Cruising Power, 6,000 ft

176 kts / 326 km/h

Takeoff Distance

MTOW, 50 ft Obstacle

1,913 ft / 583 m

Landing Distance

MLW, 50 ft Obstacle, Full Flaps

1,450 ft / 442 m

Engine

Continental
IO-550-B

Engine Power

300 hp

Number of Seats

Pilots + Passengers

1 + 5

Avionics

Garmin
G1000 NXi
MAIN DIFFERENCES

TRADITION

As a result of a consistent design, the Bonanza G36 has become one of the most traditional aviation models, being the aircraft with the longest continuous production in history. More than 18,000 units have already been produced and delivered worldwide.
Robustez

RUGGEDNESS

Rugged and very sturdy, the aircraft is even certified in the utility category.

SOPHISTICATED

The model is also available in the executive version, maximizing the level of comfort and sophistication.
Sofisticacao
Avionicos

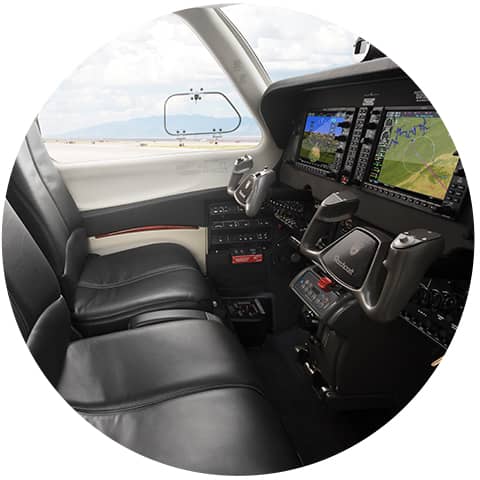

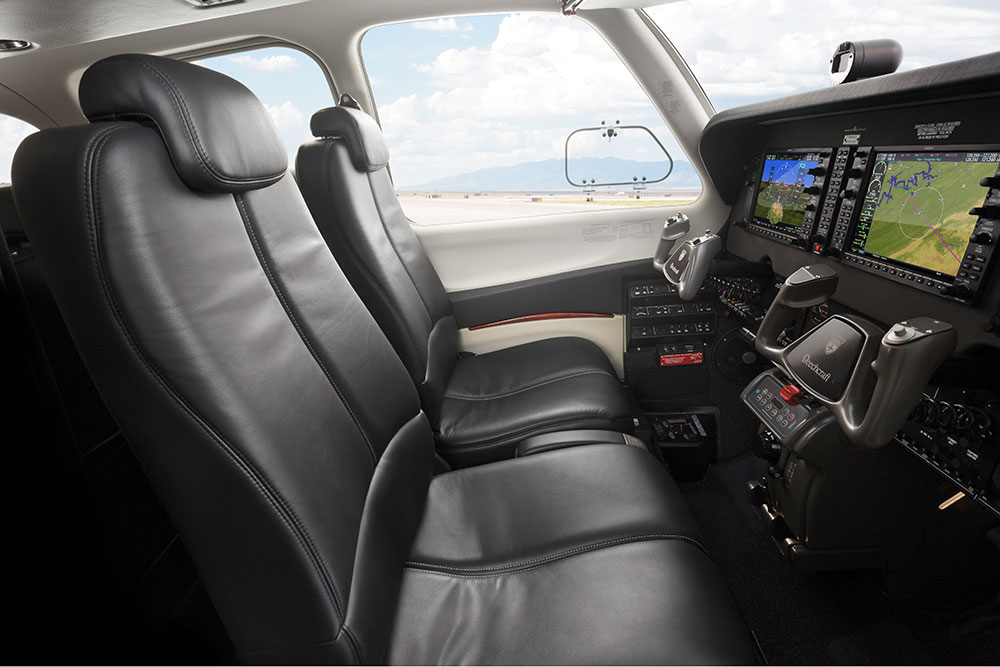

AVIONICS

Designed to reduce pilot workload and significantly improve situational awareness, the model features Garmin G1000 NXi avionics and the Yaw Damper system as standard.
DESIGN
With classic design, the Bonanza G36 brings the best in aerodynamics.
IMAGE GALLERY

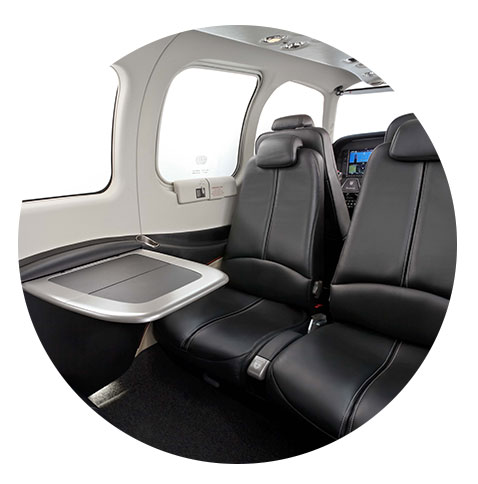

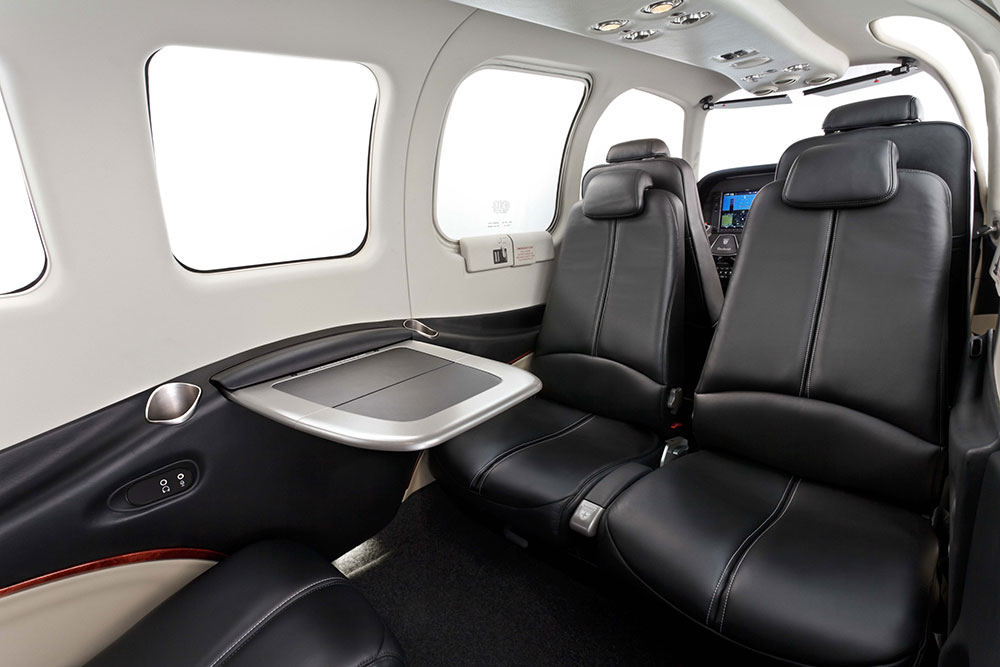

INTERIOR SPACE
Its cabin optimizes interior space and can carry up to six occupants.
DETAILED SPECIFICATIONS
DIMENSIONS
Length 8.38 m
Height 2.62 m
Wingspan 10.21 m
CABIN
Seats (pil. + pass.) 1 + 5

WEIGHTS
Maximum Takeoff Weight 3,650 lb (1,656 kg)
Payload 481 kg
Maximum Fuel 74 gal (280 L)

EQUIPMENT
Engine Continental IO-550-B
Avionics Garmin G1000 NXi


PERFORMANCE
Maximum Range1 920 NM (1,704 km)
Max. Cruising Speed2 176 kts (326 km/h)

Takeoff
Takeoff Distance3 1.913 ft (583 m)

Landing
Landing Distance4 1,450 ft (442 m)

Service Ceiling 18,500 ft (5,639 m)
Max. Rate of Climb 1,230 ft/min
1 Maximum Range Power, Reserve of 45 min
2 Maximum Cruising Power, 6,000 ft
3 MTOW, 50 ft Obstacle
4 MLW, 50 ft Obstacle, Full Flaps
